Jaali workspace — a prototype

Study: West-facing screen · atrium · daylight without glare
Status: Concept, not built

A three-storey workspace bar that answers the western sun with a jaali skin held 1.2 m off the façade. The gap is a shaded walkway and a buffer of moving air; a central atrium brings top light and lets warm air escape. A prototype for small studios and offices in Karnataka’s towns.

12 × 30 m floor plate, 3 storeys
West jaali skin 1.2 m off the wall
Central 8 × 6 m atrium with rooflight

Drawings

1 / 7

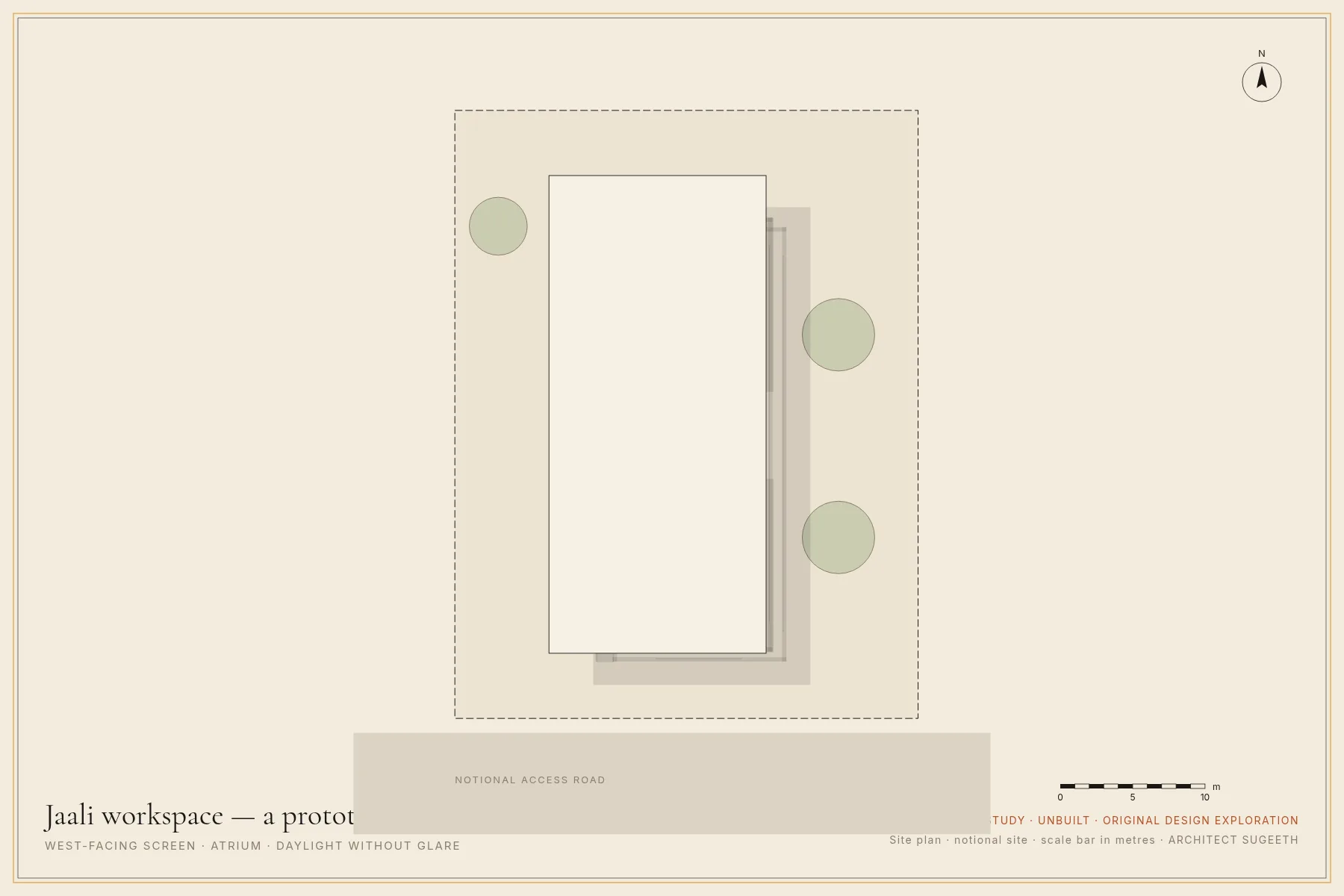

Site plan · Concept study · not built — PlanSite plan

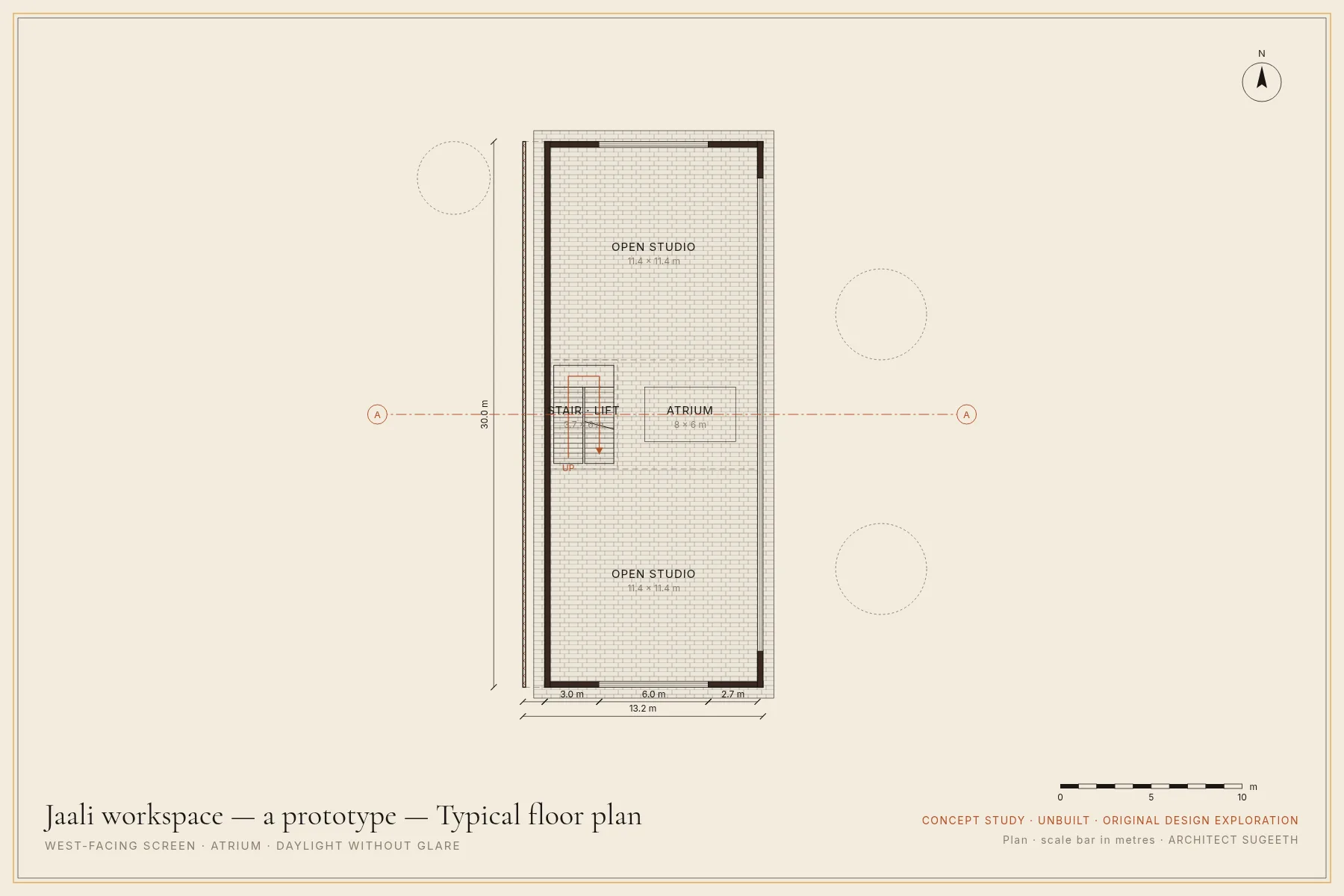

Typical floor plan · Concept study · not built — PlanTypical floor plan

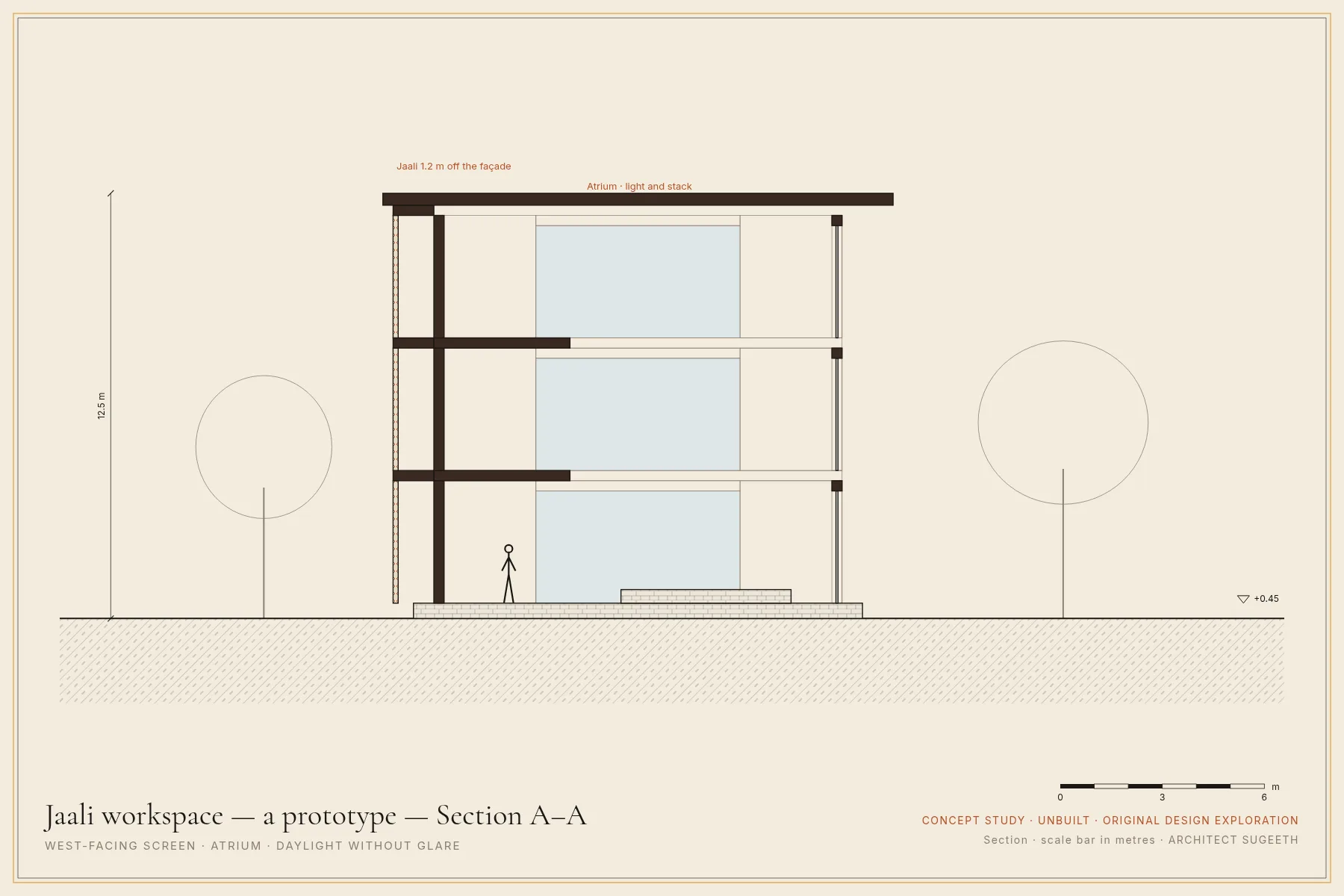

Section A–A · Concept study · not built — SectionSection A–A

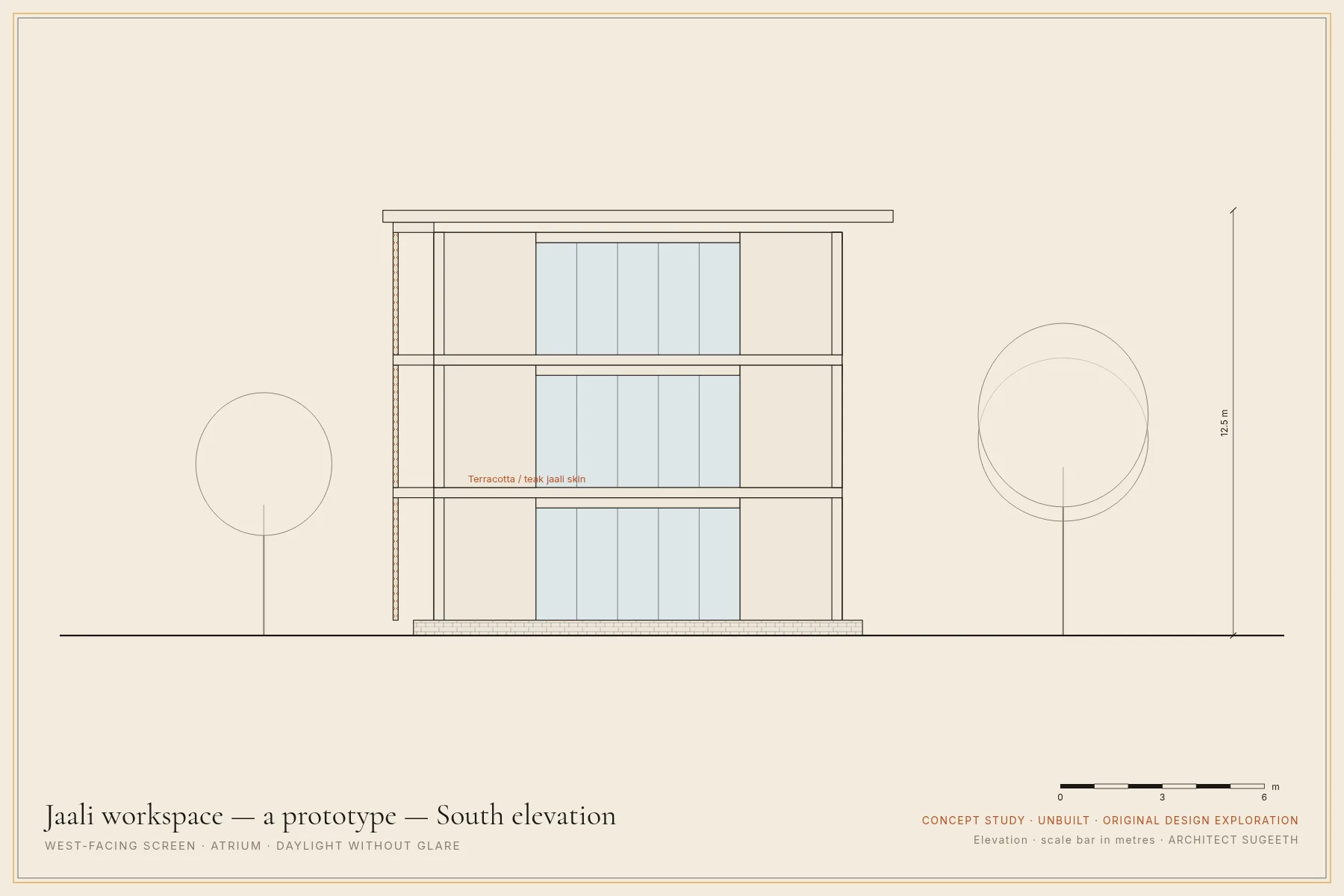

South elevation · Concept study · not built — ElevationSouth elevation

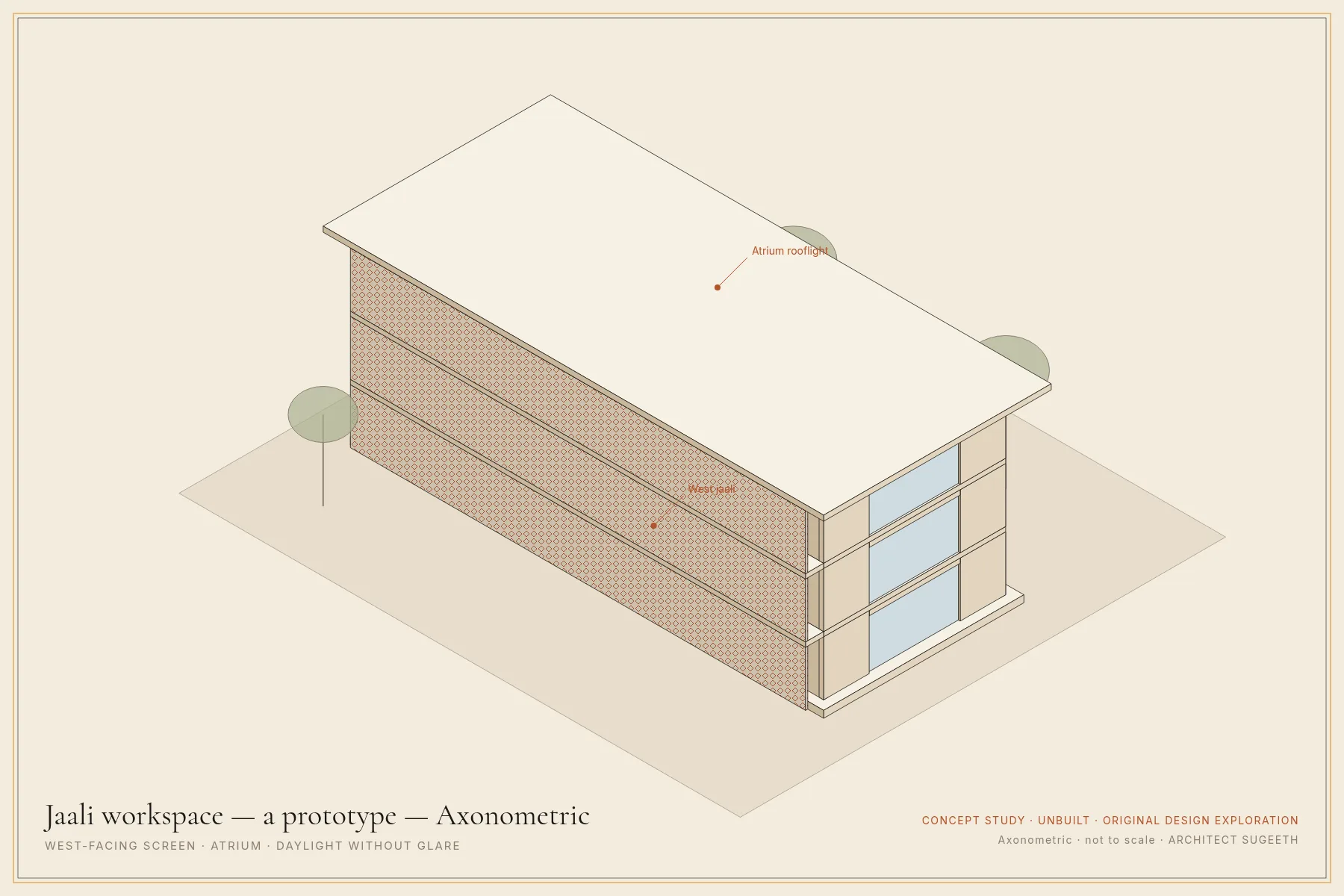

Axonometric · Concept study · not built — 3DAxonometric

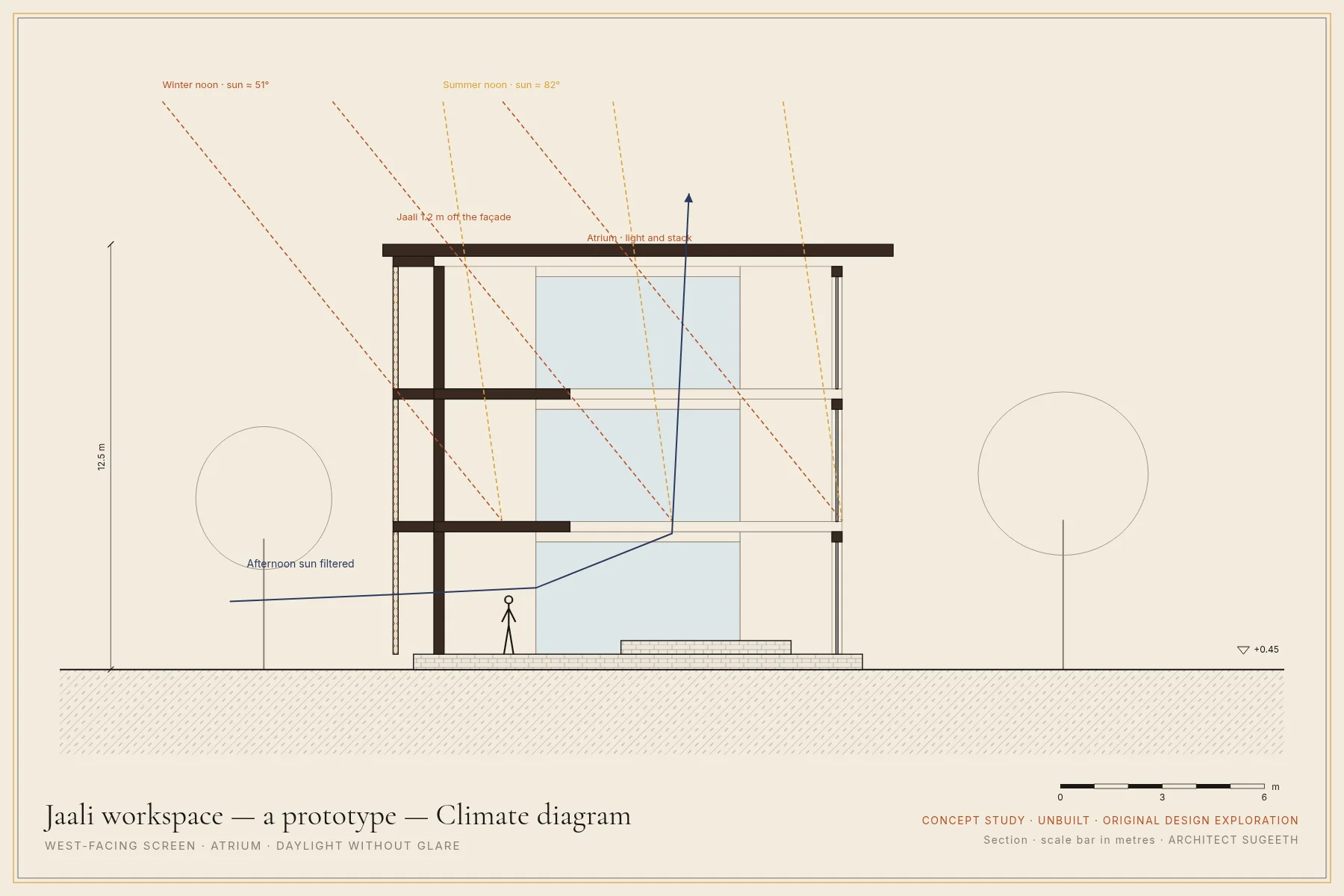

Sun, wind and light · Concept study · not built — DiagramSun, wind and light

Massing in morning light · Concept study · not built — 3DMassing in morning light

Design exploration · concept made under Sugeeth’s direction · not built · not client work
